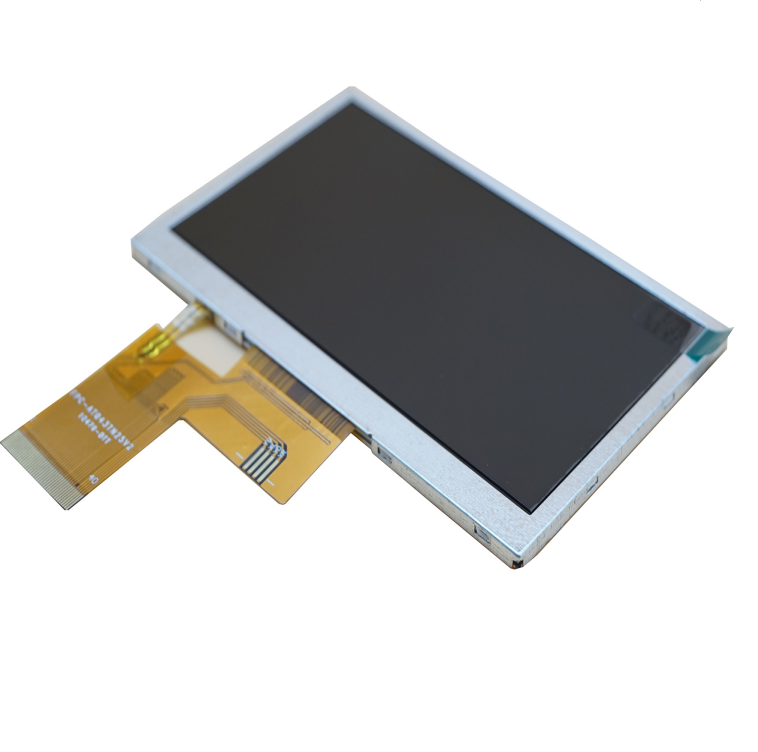

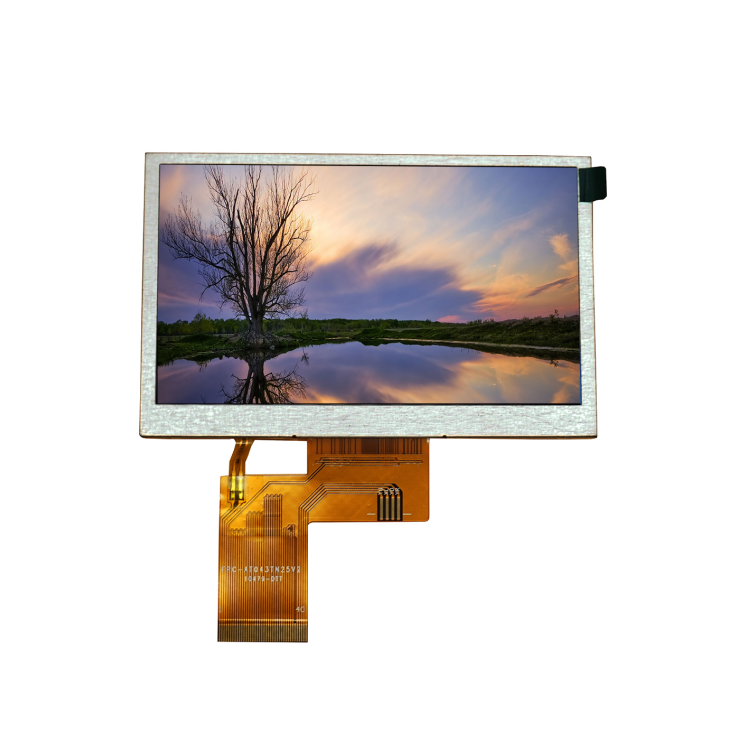

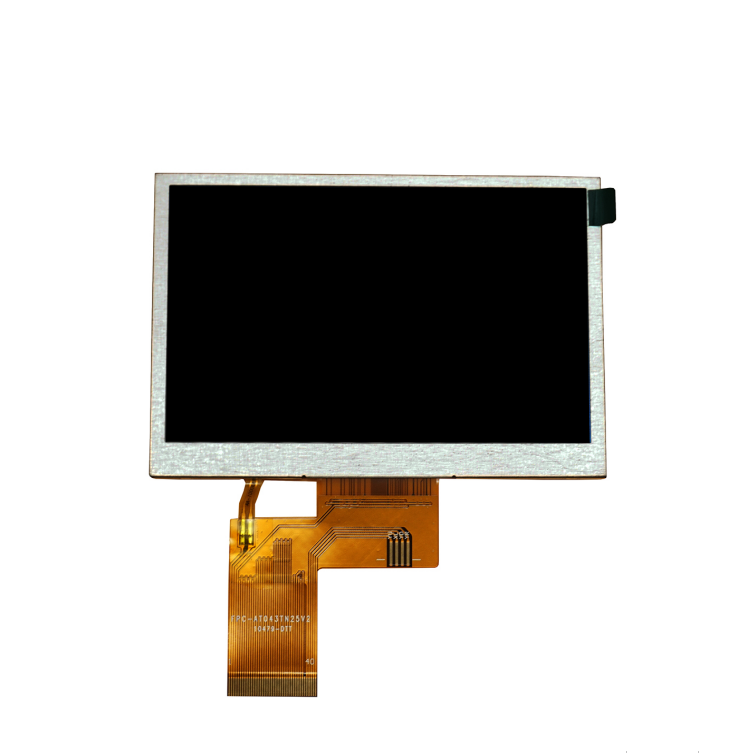

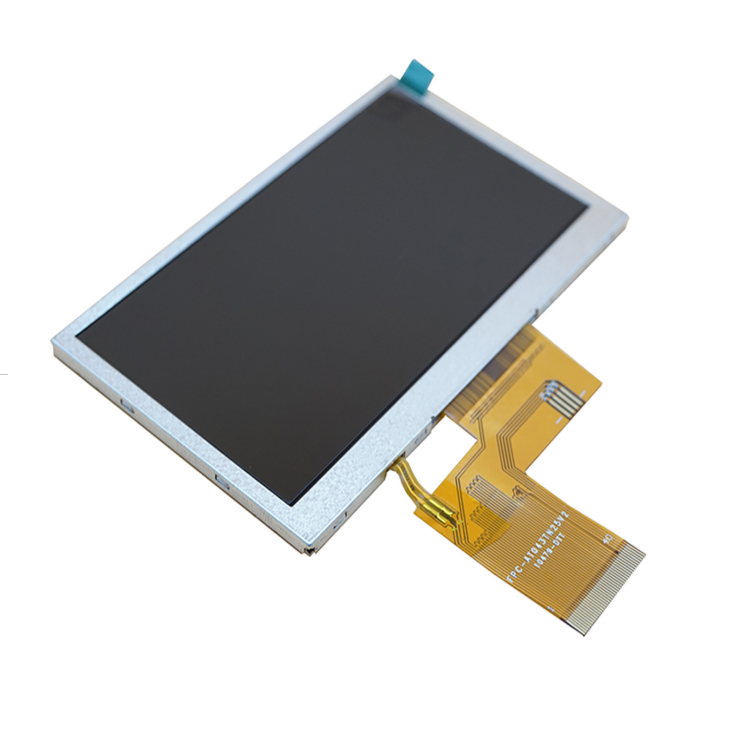

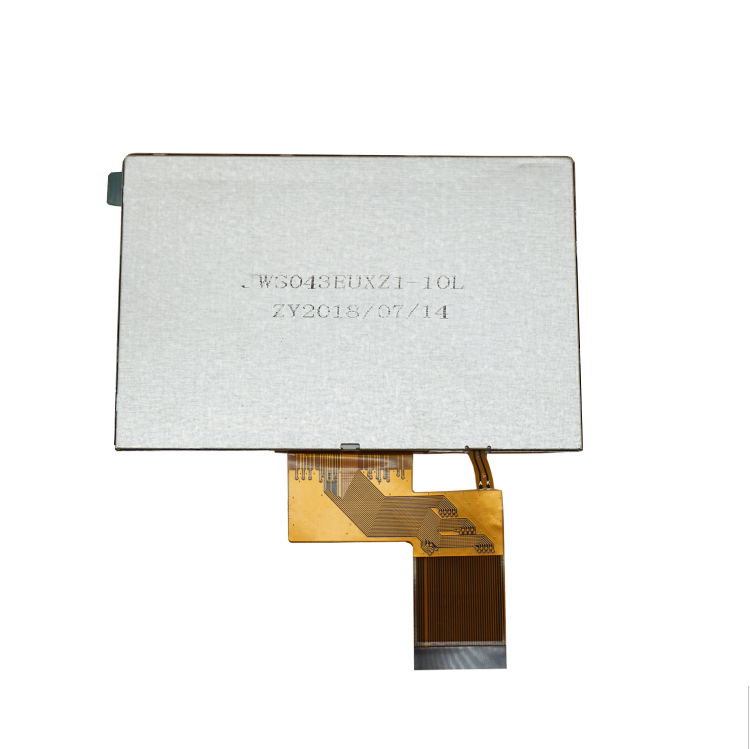

The product name | 4.3”TFT LCD模组 |
Display model | JWS043LUXZ9-10L |
Display Resolution | 480 × 3(RGB) × 272 |
Aspect Ration | 16:9 |
Contrast | 500:1 (Typ.) (TM) |
Overall Size | 105.4(W) × 67.07(H) ×3.0(D) mm |
Active Area (A.A) | 95.04(W) × 53.856(H) |
Luminace | 400cd/m² |
Visual Angle | 70/70/50/70 |
Viewing Direction | 6 O’ clock |
Color Depth | 16.7M , 60% |
Interface | 50 pins Parallel RGB (1 ch, 6/8-bit) , FPC |
Drive-screen voltage | 16V |
Backlight Supply Current | 40 mA |
Operating temperature range | -20 ~ 70 °C |
Storage temperature range | -30 ~ 80 °C |
Response Time | 10/15 (Typ.)(Tr/Td) ms |
Display mode | TN,Mormally White,Transmissive |
产品名称 | 4.3”TFT LCD模组 |
产品型号 | JWS043LUXZ9-10L |
分辨率 | 480 × 3(RGB) × 272 |
比例 | 16:9 |
对比度度 | 500:1 (Typ.) (TM) |
外观尺寸 | 105.4(W) × 67.07(H) ×3.0(D) mm |
显示区域 | 95.04(W) × 53.856(H) |
亮度 | 400cd/m² |
可视角度 | 70/70/50/70 |
最佳视角 | 6 O’ clock |
显示颜色 | 16.7M , 60% |
接口类型 | 50 pins Parallel RGB (1 ch, 6/8-bit) , FPC |
电压 | 16V |
电流 | 40 mA |
工作环境 | -20 ~ 70 °C |
储存环境 | -30 ~ 80 °C |
反应时间 | 10/15 (Typ.)(Tr/Td) ms |
光学模式 | TN,Mormally White,Transmissive |
