Product Details

The product name

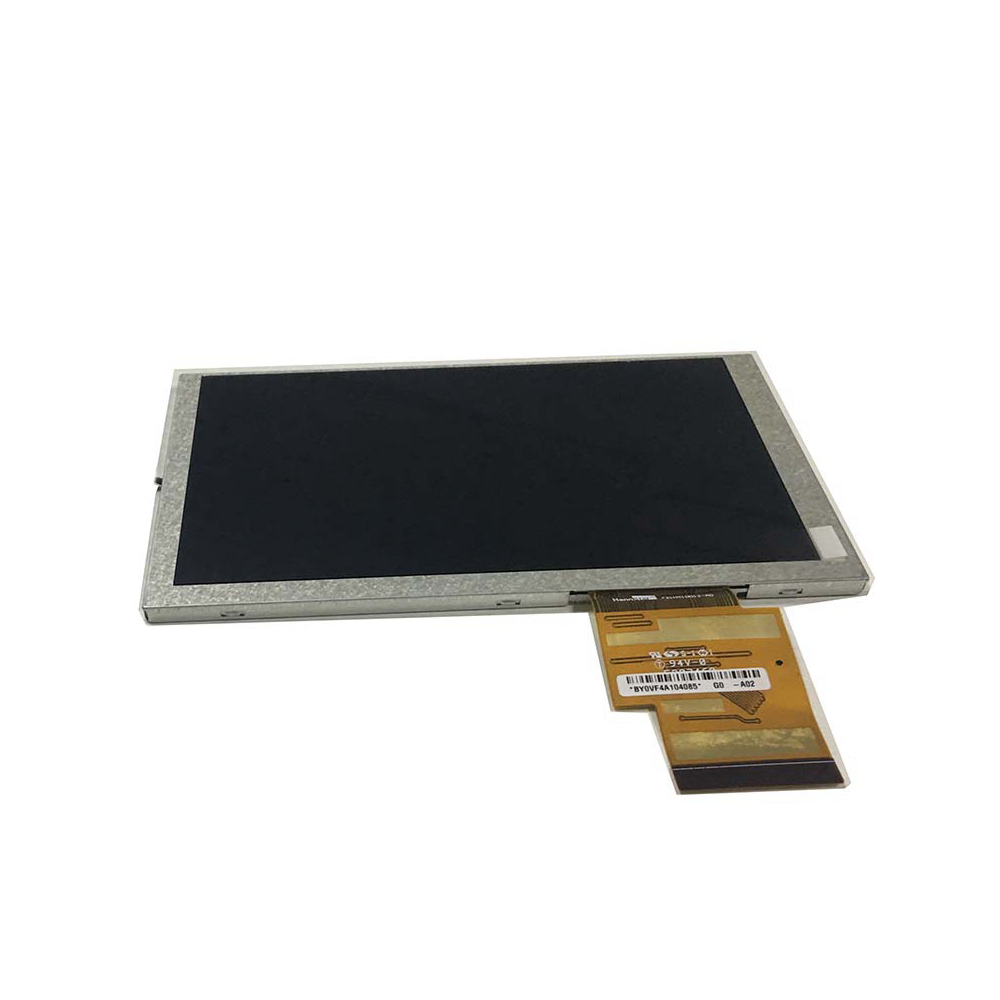

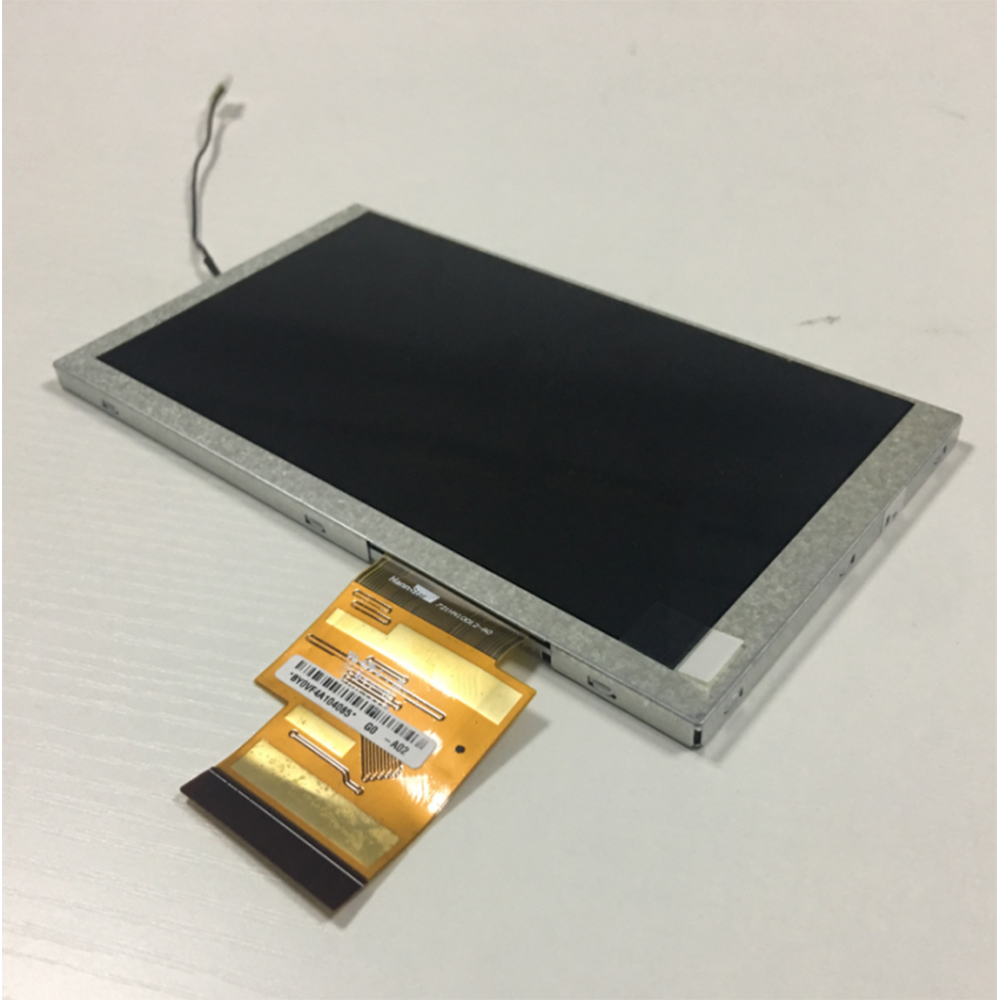

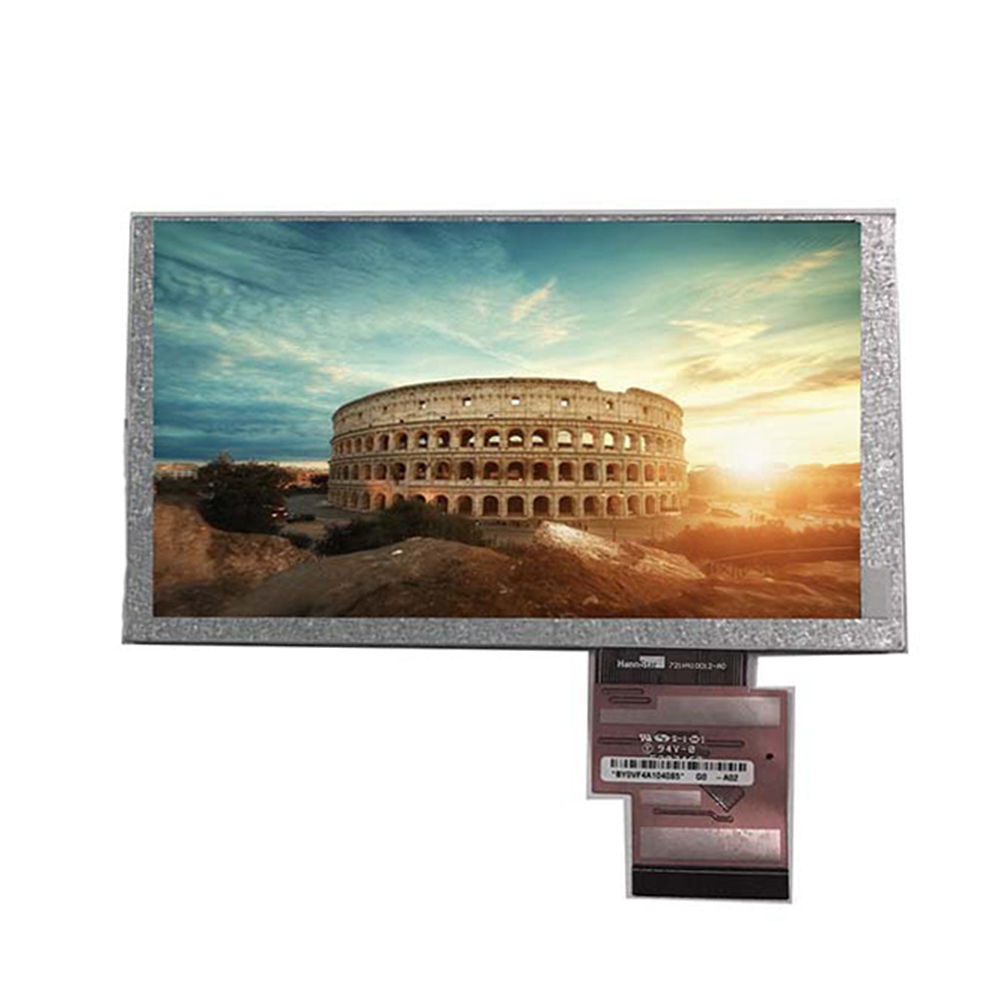

7.0 inch TFT LCD moudule

7.0 inch TFT LCD moudule

7.0 inch TFT LCD moudule

7.0 inch TFT LCD moudule

7.0 inch TFT LCD moudule

7.0 inch TFT LCD moudule

Display model

JWS07035EWVCTE-18L

JWS07035EWVCTE-27L

JWS07057EWVCTE-15L

JWS07057EWVCTE-27L

JWS07057EWVCPE-27L

JWS07057EWVCPEIPS-27L

Display Resolution

 800(RGB)×480

 800(RGB)×480

 800(RGB)×480

 800(RGB)×480

 1024(RGB)×600

1024(RGB)×600

Aspect Ration

 16:9

 16:9

 16:9

 16:9

 16:9

 16:9

Contrast

500:1 (Typ.) (TM)

500:1 (Typ.) (TM)

500:1 (Typ.) (TM)

500:1 (Typ.) (TM)

800:1 (Typ.) (TM)

800:1 (Typ.) (TM)

Overall Size

164.9(W)×100(H) ×3.5(T)

164.9(W)×100(H) ×3.5(T)

164.9(W)×100(H) ×5.7(T)

164.9(W)×100(H) ×5.7(T)

164.9(W)×100(H) ×5.7(T)

164.9(W)×100(H) ×5.7(T)

Active Area (A.A)

154.08(W)×85.92(H)

154.08(W)×85.92(H)

154.08(W)×85.92(H)

154.08(W)×85.92(H)

154.08(W)×85.92(H)

154.08(W)×85.92(H)

Luminace

200cd/m²

350cd/m²

250cd/m²

420cd/m²

400cd/m²

400cd/m²

Visual Angle

70/70/50/70

70/70/50/70

70/70/50/70

70/70/50/70

70/70/50/70

85/85/85/85

Viewing Direction

6 Oclock

6 Oclock

6 Oclock

6 Oclock

6 Oclock

全视角

Color Depth

16.7M , 60%

16.7M , 60%

16.7M , 60%

16.7M , 60%

16.7M , 60%

16.7M , 60%

Module weight

150.0g

150.0g

150.0g

150.0g

150.0g

150.0g

Interface

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

Drive-screen voltage

9.9V

9.9V

9.9V

9.9V

9.9V

9.9V

Backlight Supply Current

120 mA

180 mA

100 mA

180 mA

180 mA

180 mA

Operating temperature range

 -20 ~ 70 °C

 -20 ~ 70 °C

 -20 ~ 70 °C

 -20 ~ 70 °C

 -20 ~ 70 °C

 -20 ~ 70 °C

Storage temperature range

 -30 ~ 80 °C

 -30 ~ 80 °C

 -30 ~ 80 °C

 -30 ~ 80 °C

 -30 ~ 80 °C

 -30 ~ 80 °C

Response Time

10/15 (Typ.)(Tr/Td) ms

10/15 (Typ.)(Tr/Td) ms

10/15 (Typ.)(Tr/Td) ms

10/15 (Typ.)(Tr/Td) ms

10/15 (Typ.)(Tr/Td) ms

10/15 (Typ.)(Tr/Td) ms

Display mode

TNNormally WhiteTransmissive

TNNormally WhiteTransmissive

TNNormally WhiteTransmissive

TNNormally WhiteTransmissive

TNNormally WhiteTransmissive

TNNormally WhiteTransmissive
