4.3 inch

/ueditor/net/upload/image/20180919/6367296558751514404872733.jpg
/ueditor/net/upload/image/20180919/6367296559282750801683982.jpg
/ueditor/net/upload/image/20180919/6367296559815549666022648.jpg
节点内容
Product Details

The product name

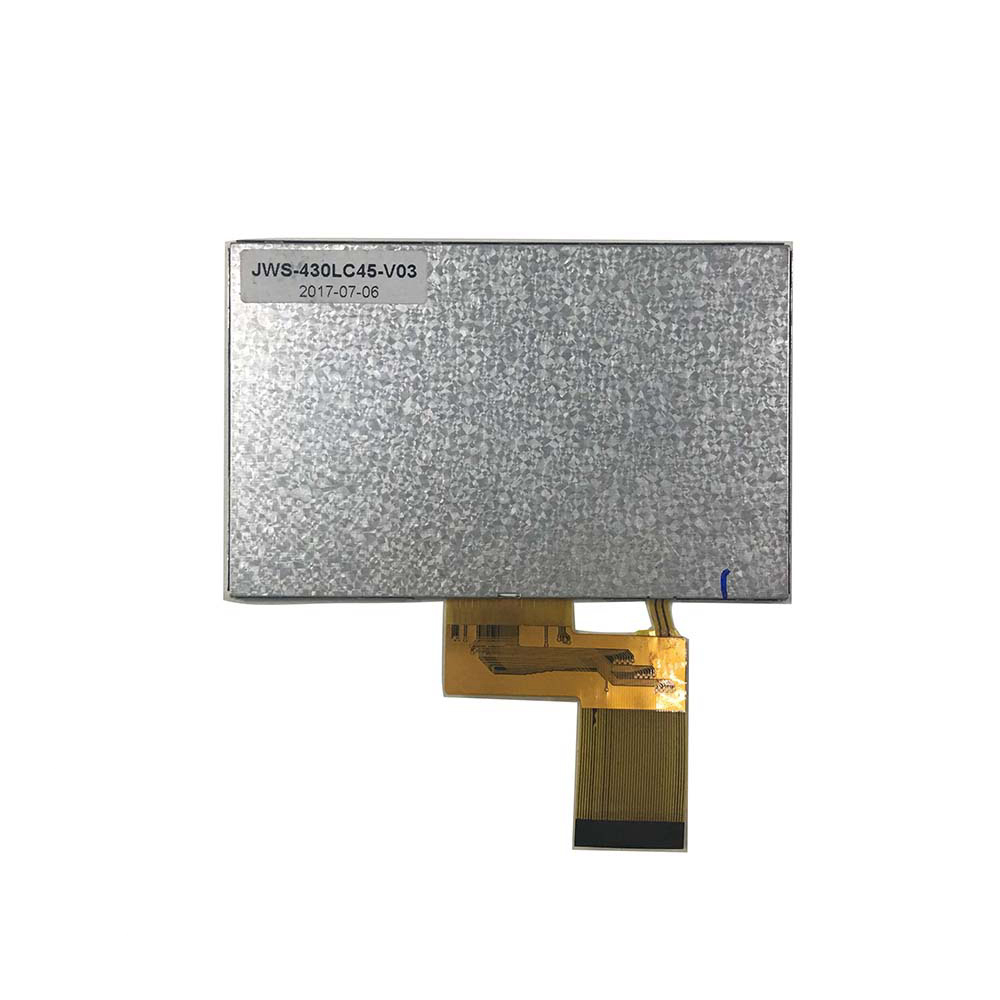

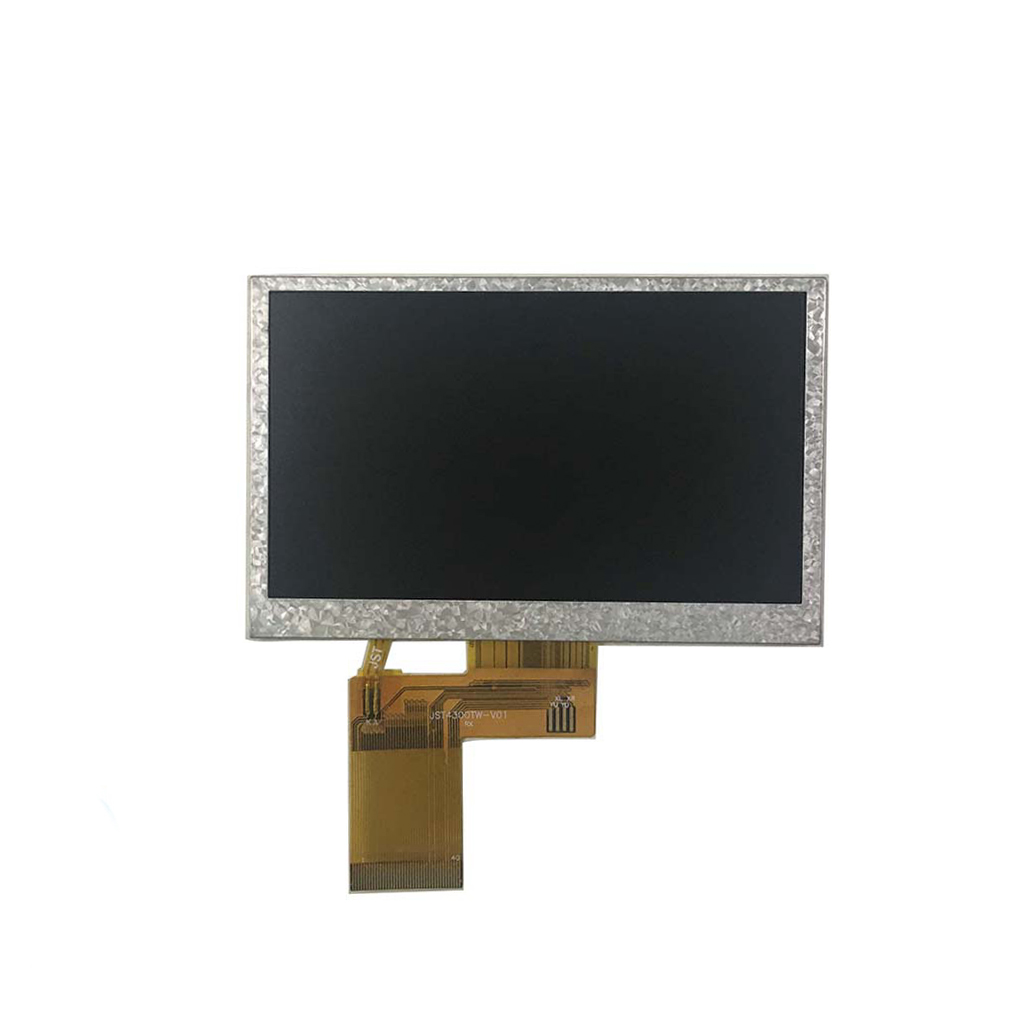

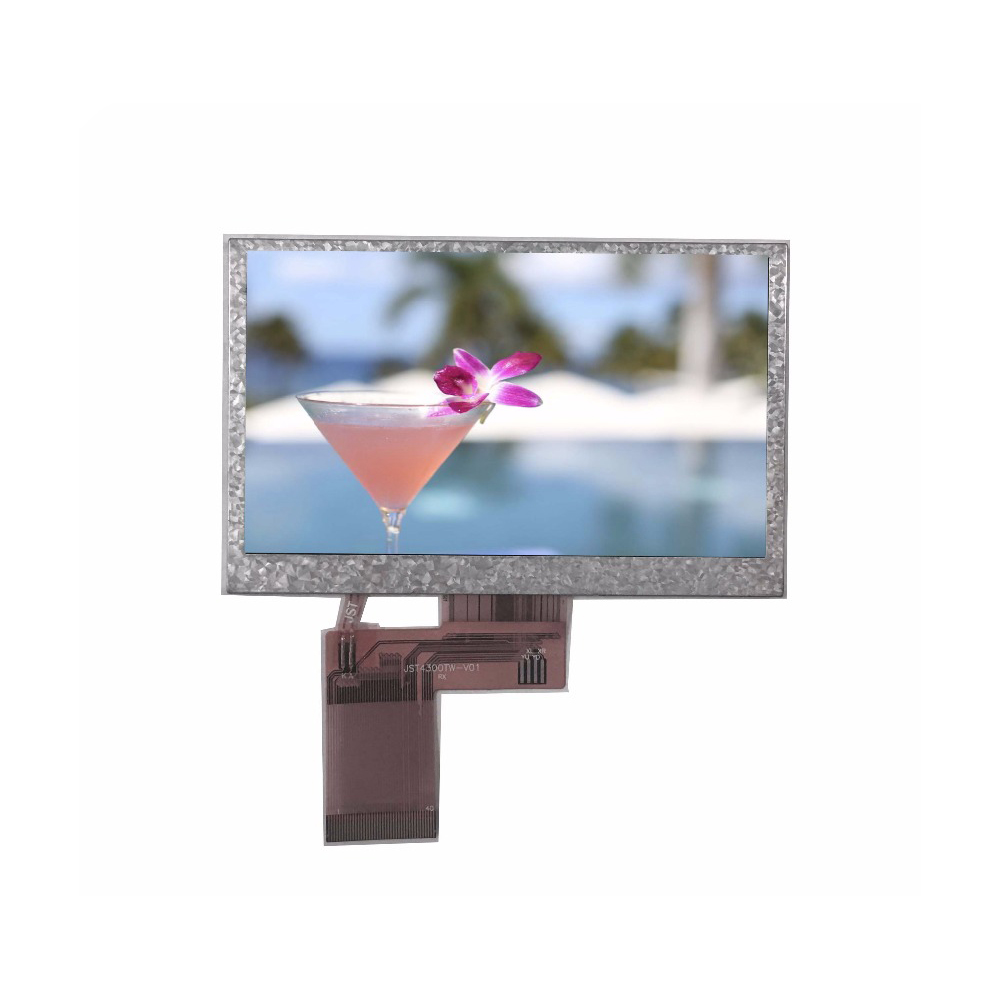

4.3 inch TFT LCD moudule

Display model

JWS043ELUXZ1-7L

Display Resolution

 480 × 3(RGB) × 272

Aspect Ration

 16:9

Contrast

500:1 (Typ.) (TM)

Overall Size

105.4(W) × 67.07(H) ×3.0(D) mm

Active Area (A.A)

 95.04(W) × 53.856(H)

Luminace

300cd/m²

Visual Angle

70/70/50/70

Viewing Direction

6 O’ clock

Color Depth

16.7M , 60%

Interface

50 pins Parallel RGB (1 ch, 6/8-bit) , FPC

Drive-screen voltage

22V

Backlight Supply Current

20 mA

Operating temperature range

 -20 ~ 70 °C

Storage temperature range

 -30 ~ 80 °C

Response Time

10/15 (Typ.)(Tr/Td) ms

Display mode

TN,Mormally White,Transmissive
